KF高真空高寿命不锈钢角阀-手动
破真空阀/粗抽阀 Venting Valve/Pumping Valve
KF-HV-Stainless-steel-angle-valve-single-acting-normally-close.png)
| select | |||

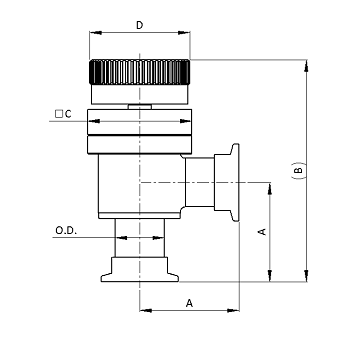

| Model No. | AVBH-KF16-M | AVBH-KF25-M | AVBH-KF40-M |
| Parts No. | 30110901001A | 30111101001A | 30111301001A |
| A | 54.6 | 51.6 | 61 |
| B | 119.4 | 115.3 | 153.8 |
| C | 45 | 54 | 69 |
| D | 52 | 52 | 62 |
| O.D. | 19.05 | 25.4 | 38.1 |
| Select | Model No. | Parts No. | A | B | C | D | O.D. |
| AVBH-KF16-M | 30110901001A | 54.6 | 119.4 | 45 | 52 | 19.05 | |
| AVBH-KF25-M | 30111101001A | 51.6 | 115.3 | 54 | 52 | 25.4 | |
| AVBH-KF40-M | 30111301001A | 61 | 153.8 | 69 | 62 | 38.1 |
特色
- 316Ti 不锈钢波纹管
- 不锈钢本体
- 简易维修, 快速拆装更换波纹管和密封元件
- 快速开启及关闭
阀门对照表
| 适用地区 | 法兰 | 电磁阀 | 传感器 | 波纹管 | 16 | 25 | 40 |
| 美国 | KF | √ | 30110901001A | 30111101001A | 30111301001A |
