ISO HV 不锈钢角阀 – 单作用、常闭
破真空阀/粗抽阀 Venting Valve/Pumping Valve
KF-HV-Stainless-steel-angle-valve-single-acting-normally-close.png)
| select | ||||

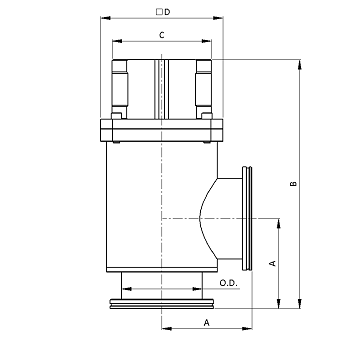

| Model No. | AVBHS-ISO100-P | AVBHS-ISO160-P | AVBHS-ISO100-P-E | AVBHS-ISO160-P-E |
| Parts No. | 30111814021A | 30112014021A | 31111814021A | 31112014021A |
| A | 113.5 | 159 | 108 | 138 |
| B | 307.9 | 371 | 302.4 | 350 |
| C | 125 | 160 | 125 | 160 |
| D | 154 | 195 | 154 | 195 |
| O.D. | 101.6 | 152.4 | 101.6 | 152.4 |
| Select | Model No. | Parts No. | A | B | C | D | O.D. |
| AVBHS-ISO100-P | 30111814021A | 113.5 | 307.9 | 125 | 154 | 101.6 | |
| AVBHS-ISO160-P | 30112014021A | 159 | 371 | 160 | 195 | 152.4 | |
| AVBHS-ISO100-P-E | 31111814021A | 108 | 302.4 | 125 | 154 | 101.6 | |
| AVBHS-ISO160-P-E | 31112014021A | 138 | 350 | 160 | 195 | 152.4 |
规格
- 316Ti不锈钢波纹管
- 不锈钢机身
阀门对照表
| 适用地区 | 法兰 | 电磁阀 | 传感器 | 波纹管 | 100 | 160 |
| 美国 | ISO | √ | √ | 30111814021A | 30112014021A | |
| 欧洲 | ISO | √ | √ | 31111814021A | 31112014021A |
