迷你型全金属阀门
全金属阀门 All-Metal Valve

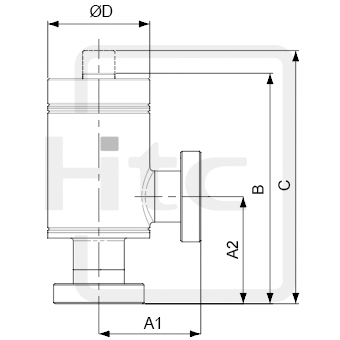

| select | ||
| Model No. | AVMBAK-CR16-M | |
| Parts No. | 30050993004A | |
| A1 | 38.1 | |
| A2 | 40 | |
| B | 85 | |
| C | 94.5 | |
| D | 38.1 | |
| O.D. | 19.05 | |
| Select | Model No. | Parts No. | A1 | A2 | B | C | D | O.D. |
| AVMBAK-CR16-M | 30050993004A | 38.1 | 40 | 85 | 94.5 | 38.1 | 19.05 |
迷你型全金属阀门 (高寿命)
特点 Features
- 工作温度范围: 可烘烤至 : 400oC(open), 300oC(close)
- 压力范围 : 1x10-10mbar~1000mbar
- 全不锈钢结构
- 波纹管密封
- 泄漏率 : 5x10-10 mbar.l/sec
- 闭合扭矩 : CR16 First 90~120kg-cm, Maximum 200kg-cm.
- 寿命周期(用于Gasket垫片密封): 1,000
- 方向: 任意位置
技术规格 Technical Data
|
Valve Name |
All-Metal Valve – CR16 |
|
|
Part NO |
ZFB100A0070100 |
|
|
leak rates |
Seat |
5 x 10-10 mbar.l/s |
|
Material |
Body:316S.S. Gasket Seal: OFCH Copper |
|
|
Temperature operating rage:Bakeable to |
Open |
400℃ |
|
Close |
300℃ |
|
|
Pressure Range |
1x10-10 mbar ~ 1000 mbar |
|
|
Life Cycle(for Gasket Seal) |
1,000 |
|
|
Weight(kg) |
0.4 |
|
|
Closure Torque |
First 90~120kg-cm, Maximum 200kg-cm |
|
|
Orientation |
Any position |
|
