90度弯头-ISO法兰接口
弯头 Elbows
| select | ||||
| Model No. | ISO63EL90A | ISO80EL90A | ISO100EL90A | ISO160EL90A |
| Parts No. | 16032072074 | 16032082084 | 16032092094 | 16032122124 |
| Material | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. |

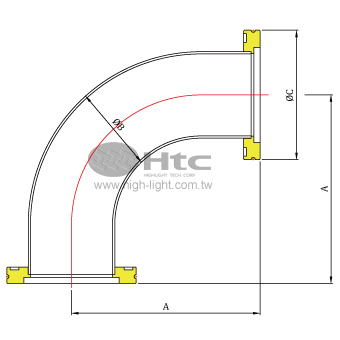

| A | 138.4 | 166.9 | 217.7 | 235.2 |
| B | 63.5 | 76.2 | 101.6 | 152.4 |
| C | 95 | 110 | 130 | 180 |
| Select | Model No. | Parts No. | Material | A | B | C |
| ISO63EL90A | 16032072074 | 304 S.S. | 138.4 | 63.5 | 95 | |
| ISO80EL90A | 16032082084 | 304 S.S. | 166.9 | 76.2 | 110 | |
| ISO100EL90A | 16032092094 | 304 S.S. | 217.7 | 101.6 | 130 | |
| ISO160EL90A | 16032122124 | 304 S.S. | 235.2 | 152.4 | 180 |
■零件号（零件号）加“ K”表示喷砂表面
■零件号（零件号）加“ L”表示抛光表面
