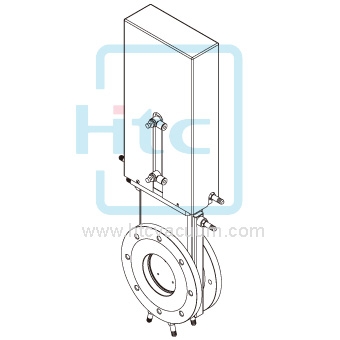

内嵌式水冷式闸阀

Model Name

ASA9 Cooling Gate Valve

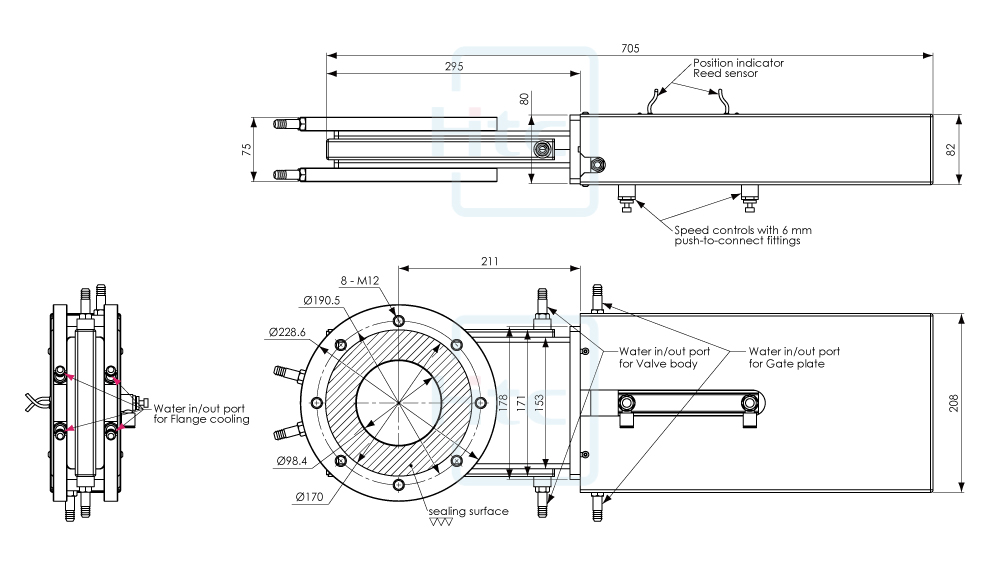

Opening size

φ98.4 mm

Material

Valve Body

304 S.S

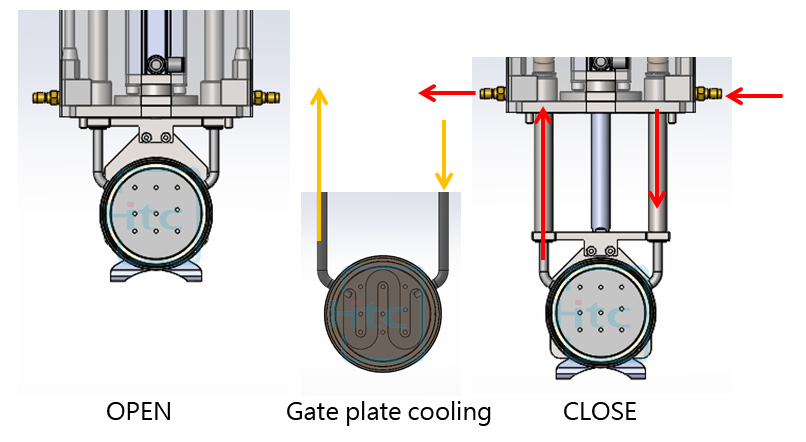

Gate Plate

304 S.S

Water fittings

Brass

Surface Treatment

Polishing Treatment

Service life

100,000 cycles

Leakage rate

< 1 x 10^-9 mbar*l/s

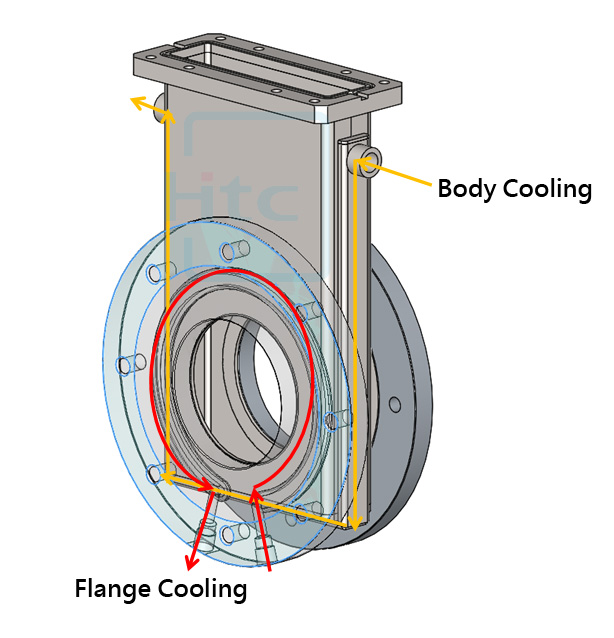

Temperature

Valve Body

<150 ℃ (With cooling water)

Drive

≤ 60 ℃

Use pressure range

1 x 10^-9 mbar to 1 bar

Allowable differential pressure on both sides of the gate

≦ 1 atm

Differential pressure at opening

< 27 mbar

Sealing

Gate / Bonnet

Viton O-ring

Driving Shaft

Shaft seal

Time of open or close

Open≦3 sec, Close≦3 sec

Operating CDA pressure

0.5~0.6 MPa

Position indicator

Reed sensor 24V DC

solenoid valve

Option

Mounting Position

any

Weight

about 21 kg

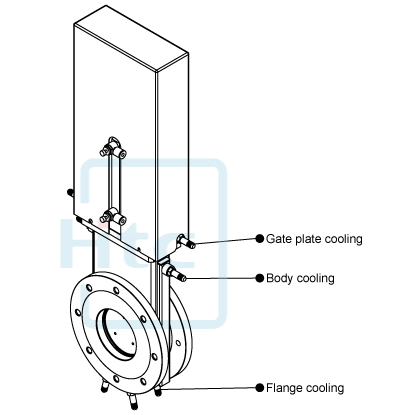

Others

All water ports with barb style fittings for 1/4” ID hose

All pneumatic ports with 6mm OD tube “push-to-connect” fittings.

Water leak check entire assembly to 5 kg/cm2
