KF高真空快速关闭式闸阀 - 气动、锥形闸板
高真空快速闭合式闸阀
| select | |
| Model No. | GVD-SS-KF50-P |
| Parts No. | GD1B312 |

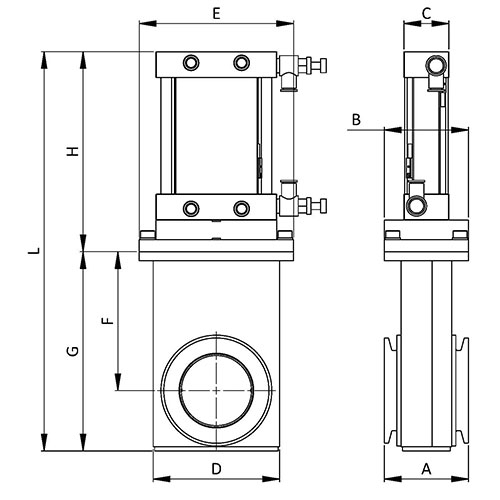

| A | 60 |
| B | 60 |
| C | 32 |
| D | 90 |
| E | 110 |
| F | 99 |
| G | 142 |
| H | 142.5 |
| L | 284.5 |
| Bolt Size*No | -- |
| Bolt P.C.D. | -- |
| Bonnet seal | Viton |
| Flange O.D. | 75 |
| Port Dia. | 50 |
| Thread Depth | -- |
| Select | Model No. | Parts No. | A | B | C | D | E | F | G | H | L | Bolt Size*No | Bolt P.C.D. | Bonnet seal | Flange O.D. | Port Dia. | Thread Depth |
| GVD-SS-KF50-P | GD1B312 | 60 | 60 | 32 | 90 | 110 | 99 | 142 | 142.5 | 284.5 | -- | -- | Viton | 75 | 50 | -- |
KF高真空快速关闭式闸阀 - 气动、锥形闸板
| Flange | Bellow | Solenoid | 50 (Size) |
|---|---|---|---|
| KF | -- | -- | GD1B312 |
