KF 手动高真空蝶阀
Htc高真空手动蝶阀
| select | |||
| Model No. | KF25BFVM | KF40BFVM | KF50BFVM |
| Parts No. | 3202111101218 | 3202131101218 | 3202141101218 |
| A | 27 | 27 | 27 |
| B | 50 | 57 | 57 |
| C | 50 | 50 | 50 |
| D | 65 | 80 | 90 |
| E | 92.4 | 108.5 | 119 |
| F | 59.9 | 68.5 | 74 |
| Select | Model No. | Parts No. | A | B | C | D | E | F |
| KF25BFVM | 3202111101218 | 27 | 50 | 50 | 65 | 92.4 | 59.9 | |
| KF40BFVM | 3202131101218 | 27 | 57 | 50 | 80 | 108.5 | 68.5 | |
| KF50BFVM | 3202141101218 | 27 | 57 | 50 | 90 | 119 | 74 |

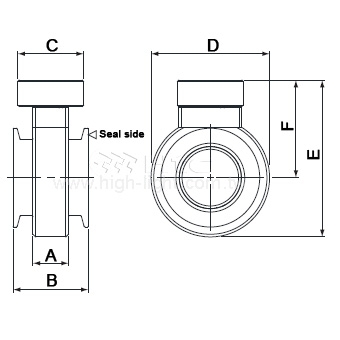

SolidWorks 2D & 3D 产品图稿
| Model No. | KF25BFVM | KF40BFVM | KF50BFVM |
| Parts No. | 3202111101218 | 3202131101218 | 3202141101218 |
| Download Type | DWG | STEP | DWG | STEP | DWG | STEP |
KF 高真空蝶阀规格
l 阀门尺寸: 1” to 2”
l 法兰：KF（NW）
l 压力范围：10-8 mbar to 1.2 bar
l 泄漏率：1x10-9 mbar．l/sec
l 阀本体材质：304 S.S.
l 密封材质：Viton
l 使用寿命：100,000
l 安装位置：Any
l 温度：Body ≦ 120°C
