KF法兰蓝宝石视窗
蓝宝石观察窗
| select | |||

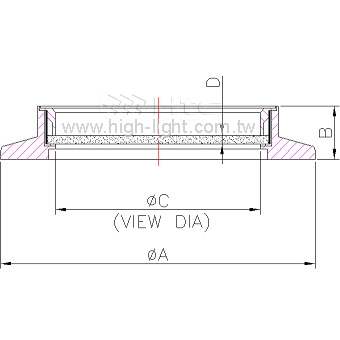

| Model No. | KVPS39 | KVPS49 | |
| Parts No. | 1000V0A043 | 1000V0A037 | |
| Material | 304 S.S. / Sapphire | 304 S.S. / Sapphire | |
| A | 55 | 75 | |
| B | 12.7 | 12.7 | |
| C | 38.5 | 48.8 | |
| D | 2 | 2 | |
| Fit Flange | KF40 | KF50 | |
| Magnetism | Non | Non | |
| Select | Model No. | Parts No. | Material | A | B | C | D | Fit Flange | Magnetism |
| KVPS39 | 1000V0A043 | 304 S.S. / Sapphire | 55 | 12.7 | 38.5 | 2 | KF40 | Non | |
| KVPS49 | 1000V0A037 | 304 S.S. / Sapphire | 75 | 12.7 | 48.8 | 2 | KF50 | Non |
- 法兰材质：不锈钢 SUS304 or SUS316
- 接头材质 : 不锈钢 SUS304
- 真空压力范围：1X 10-8 mbar
- (实际真空范围：取决于客户使用的O型圈)
- 适用温度范围：-100oC to 450oC
