ISO封盖
ISO法兰
| select | ||||||||||

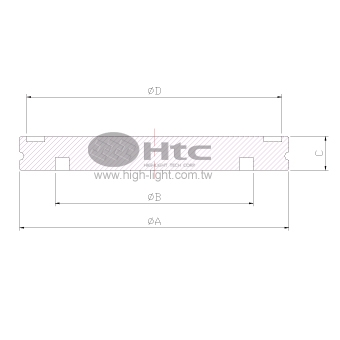

| Model No. | ISO63B | ISO80B | ISO100B | ISO160B | ISO200B | ISO250B | ISO320B | ISO400B | ISO500B | ISO630B |
| Parts No. | 152107003 | 152108003 | 152109003 | 152112003 | 152113003 | 152114003 | 152116003 | 152118003 | 152120003 | 152122003 |
| Material | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. |
| A | 95 | 110 | 130 | 180 | 240 | 290 | 370 | 450 | 550 | 690 |
| B | 70 | 83 | 102 | 153 | 213 | 261 | 318 | 400 | 501 | 651 |
| C | 12 | 12 | 12 | 12 | 12 | 12 | 17 | 17 | 17 | 22 |
| D | 90 | 105 | 125 | 175 | 235 | 285 | 365 | 445 | 545 | 685 |
| Select | Model No. | Parts No. | Material | A | B | C | D |
| ISO63B | 152107003 | 304 S.S. | 95 | 70 | 12 | 90 | |
| ISO80B | 152108003 | 304 S.S. | 110 | 83 | 12 | 105 | |
| ISO100B | 152109003 | 304 S.S. | 130 | 102 | 12 | 125 | |
| ISO160B | 152112003 | 304 S.S. | 180 | 153 | 12 | 175 | |
| ISO200B | 152113003 | 304 S.S. | 240 | 213 | 12 | 235 | |
| ISO250B | 152114003 | 304 S.S. | 290 | 261 | 12 | 285 | |
| ISO320B | 152116003 | 304 S.S. | 370 | 318 | 17 | 365 | |
| ISO400B | 152118003 | 304 S.S. | 450 | 400 | 17 | 445 | |
| ISO500B | 152120003 | 304 S.S. | 550 | 501 | 17 | 545 | |
| ISO630B | 152122003 | 304 S.S. | 690 | 651 | 22 | 685 |
SolidWorks 2D和 3D产品图稿
| Model No. | ISO63B | ISO80B | ISO100B | ISO160B | ISO200B | ISO250B | ISO320B | ISO400B | ISO500B | ISO630B |
| Parts No. | 152107003 | 152108003 | 152109003 | 152112003 | 152113003 | 152114003 | 152116003 | 152118003 | 152120003 | 152122003 |
| Download Type | DWG | STEP | DWG | STEP | DWG | STEP | DWG | STEP | DWG | STEP | DWG | STEP | DWG | STEP | DWG | STEP | DWG | STEP | DWG | STEP |
注意：请按【鼠标快捷】选择【另存新档】或【另存连结为】，需稍等一下即出现存档窗口。
