三通管

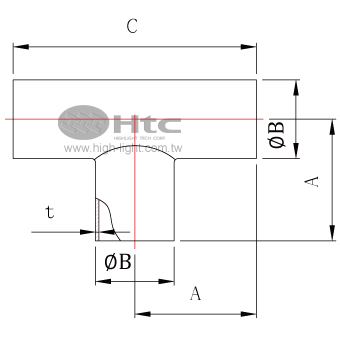

三通 Tee
| select | ||||||||
| Model No. | 16TA | 25TA | 40TA | 50TA | 63TA | 80TA | 100TA | 150TA |
| Parts No. | 16150020024 | 16150030034 | 16150050054 | 16150060064 | 16150070074 | 16150080084 | 16150090094 | 16150110114 |
| Material | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. |
| A | 34.5 | 47.6 | 57.2 | 76.2 | 76.2 | 82.5 | 98.4 | 127 |
| B | 19.05 | 25.4 | 38.1 | 50.8 | 63.5 | 76.2 | 101.6 | 152.4 |
| C | 69 | 95.2 | 114.3 | 152.4 | 152.4 | 165.1 | 196.8 | 254 |
| t | 1.65 | 1.65 | 1.65 | 1.65 | 1.65 | 1.65 | 2.1 | 2.7 |
| Select | Model No. | Parts No. | Material | A | B | C | t |
| 16TA | 16150020024 | 304 S.S. | 34.5 | 19.05 | 69 | 1.65 | |
| 25TA | 16150030034 | 304 S.S. | 47.6 | 25.4 | 95.2 | 1.65 | |
| 40TA | 16150050054 | 304 S.S. | 57.2 | 38.1 | 114.3 | 1.65 | |
| 50TA | 16150060064 | 304 S.S. | 76.2 | 50.8 | 152.4 | 1.65 | |
| 63TA | 16150070074 | 304 S.S. | 76.2 | 63.5 | 152.4 | 1.65 | |
| 80TA | 16150080084 | 304 S.S. | 82.5 | 76.2 | 165.1 | 1.65 | |
| 100TA | 16150090094 | 304 S.S. | 98.4 | 101.6 | 196.8 | 2.1 | |
| 150TA | 16150110114 | 304 S.S. | 127 | 152.4 | 254 | 2.7 |
