螺帽夹紧型磁性流体轴封
磁流体密封装置
_Non_Flange_Ferrofluid-Feedthrough.gif)
| select | |||

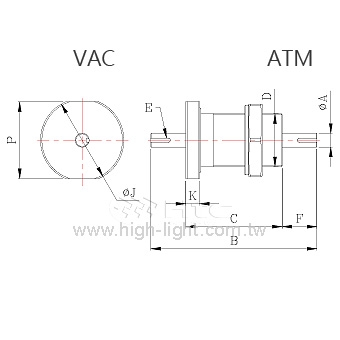

| Model No. | ABS0006CNR10 | ABS0010CNR10 | ABS0012CNR10 |
| Parts No. | 1000FF051001 | 1000FF051002 | 1000FF051003 |
| ØA | Ø6 +0 / -0.018 | Ø10 +0 / -0.022 | Ø12 +0 / -0.022 |
| B | 97.5 | 119.5 | 119.5 |
| C | 57.5 | 69.5 | 69.5 |
| D | M32*P1.5 | M38*P1.5 | M38*P1.6 |
| E | 0.5Dp*12Lg(Flat) | 3W*1.8Dp*14Lg | 3W*1.8Dp*15Lg |
| F | 20 | 25 | 25 |
| ØJ | 55 | 60 | 60 |
| K | 10 | 10 | 10 |
| P | - | 55 | 55 |
| Select | Model No. | Parts No. | ØA | B | C | D | E | F | ØJ | K | P |
| ABS0006CNR10 | 1000FF051001 | Ø6 +0 / -0.018 | 97.5 | 57.5 | M32*P1.5 | 0.5Dp*12Lg(Flat) | 20 | 55 | 10 | - | |
| ABS0010CNR10 | 1000FF051002 | Ø10 +0 / -0.022 | 119.5 | 69.5 | M38*P1.5 | 3W*1.8Dp*14Lg | 25 | 60 | 10 | 55 | |
| ABS0012CNR10 | 1000FF051003 | Ø12 +0 / -0.022 | 119.5 | 69.5 | M38*P1.6 | 3W*1.8Dp*15Lg | 25 | 60 | 10 | 55 |
真空度压力[Pa]： 10-6
泄漏率(He) [Pa.m3/sec]： < 10-12
温度范围(°C)：0~80°C
适用气体：Inert Gas 惰性气体
外壳材质：SUS304
轴材质：SUS420
