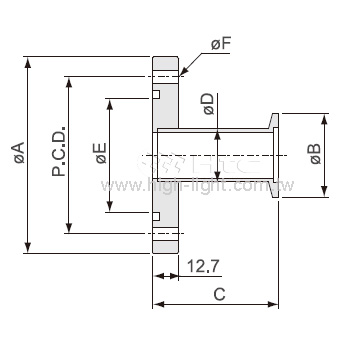

ANSI-KF法兰管接头加 O'ring 沟槽
法兰对法兰连接头
| select | ||||||
| Model No. | ASA4OGKA40 | ASA4OGKA50 | ASA5OGKA40 | ASA5OGKA50 | ASA7OGKA40 | ASA7OGKA50 |
| Parts No. | 17120301092 | 17120301122 | 17120501092 | 17120501122 | 17120801092 | 17120801122 |
| Material | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. |
| A | 108 | 108 | 127 | 127 | 190.5 | 190.5 |
| B | 55 | 75 | 55 | 75 | 55 | 75 |
| C | 42 | 42 | 42 | 42 | 42 | 42 |
| D | 38.1 | 50.8 | 38.1 | 50.8 | 38.1 | 50.8 |
| E | 47.5 | 47.5 | 63.5 | 63.5 | 117.5 | 117.5 |
| F*No. | 15.8*4 | 15.8*4 | 15.8*4 | 15.8*4 | 19*4 | 19*4 |
| Nominal | 1 | 1 | 1 1/2 | 1 1/2 | 3 | 3 |
| P.C.D. | 79.4 | 79.4 | 98.4 | 98.4 | 152.4 | 152.4 |
| Select | Model No. | Parts No. | Material | A | B | C | D | E | F*No. | Nominal | P.C.D. |
| ASA4OGKA40 | 17120301092 | 304 S.S. | 108 | 55 | 42 | 38.1 | 47.5 | 15.8*4 | 1 | 79.4 | |
| ASA4OGKA50 | 17120301122 | 304 S.S. | 108 | 75 | 42 | 50.8 | 47.5 | 15.8*4 | 1 | 79.4 | |
| ASA5OGKA40 | 17120501092 | 304 S.S. | 127 | 55 | 42 | 38.1 | 63.5 | 15.8*4 | 1 1/2 | 98.4 | |
| ASA5OGKA50 | 17120501122 | 304 S.S. | 127 | 75 | 42 | 50.8 | 63.5 | 15.8*4 | 1 1/2 | 98.4 | |
| ASA7OGKA40 | 17120801092 | 304 S.S. | 190.5 | 55 | 42 | 38.1 | 117.5 | 19*4 | 3 | 152.4 | |
| ASA7OGKA50 | 17120801122 | 304 S.S. | 190.5 | 75 | 42 | 50.8 | 117.5 | 19*4 | 3 | 152.4 |
