KF-VCR法兰管接头(母牙)
管接头系列
| select | ||||||||
| Model No. | KF16FVCR6 | KF16FVCR13 | KF25FVCR6 | KF25FVCR13 | KF40FVCR6 | KF40FVCR13 | KF50FVCR6 | KF50FVCR13 |
| Parts No. | 17010217012 | 17010217032 | 17010317012 | 17010317032 | 17010517012 | 17010517032 | 17010617012 | 17010617032 |
| Material | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. |

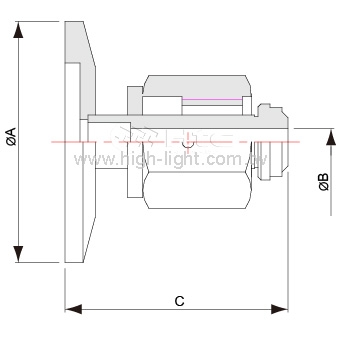

| A | 30 | 30 | 40 | 40 | 55 | 55 | 75 | 75 |
| B | 4.4 | 10.4 | 4.4 | 10.4 | 4.4 | 10.4 | 4.4 | 10.4 |
| C | 37 | 41.9 | 37 | 41.9 | 37 | 41.9 | 37 | 41.9 |
| VCR | 1/4" | 1/2" | 1/4" | 1/2" | 1/4" | 1/2" | 1/4" | 1/2" |
| Select | Model No. | Parts No. | Material | A | B | C | VCR |
| KF16FVCR6 | 17010217012 | 304 S.S. | 30 | 4.4 | 37 | 1/4" | |
| KF16FVCR13 | 17010217032 | 304 S.S. | 30 | 10.4 | 41.9 | 1/2" | |
| KF25FVCR6 | 17010317012 | 304 S.S. | 40 | 4.4 | 37 | 1/4" | |
| KF25FVCR13 | 17010317032 | 304 S.S. | 40 | 10.4 | 41.9 | 1/2" | |
| KF40FVCR6 | 17010517012 | 304 S.S. | 55 | 4.4 | 37 | 1/4" | |
| KF40FVCR13 | 17010517032 | 304 S.S. | 55 | 10.4 | 41.9 | 1/2" | |
| KF50FVCR6 | 17010617012 | 304 S.S. | 75 | 4.4 | 37 | 1/4" | |
| KF50FVCR13 | 17010617032 | 304 S.S. | 75 | 10.4 | 41.9 | 1/2" |
