大型矩形閥 L-motion type
矩形閥門
| select | |
| Model No. | Customized |
| Parts No. | Customized |
| Material | Stainless steel |
| Size | by your need |
| Note | Please check box, Send Inquiry to contact us. |
| Select | Model No. | Parts No. | Material | Size | Note |
| Customized | Customized | Stainless steel | by your need | Please check box, Send Inquiry to contact us. |

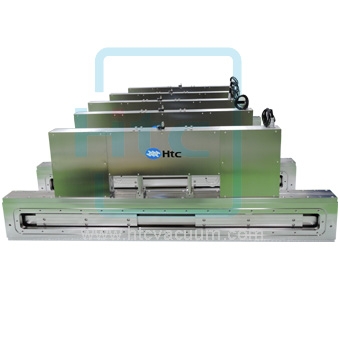

大型矩形傳輸閥門 L-motion型式

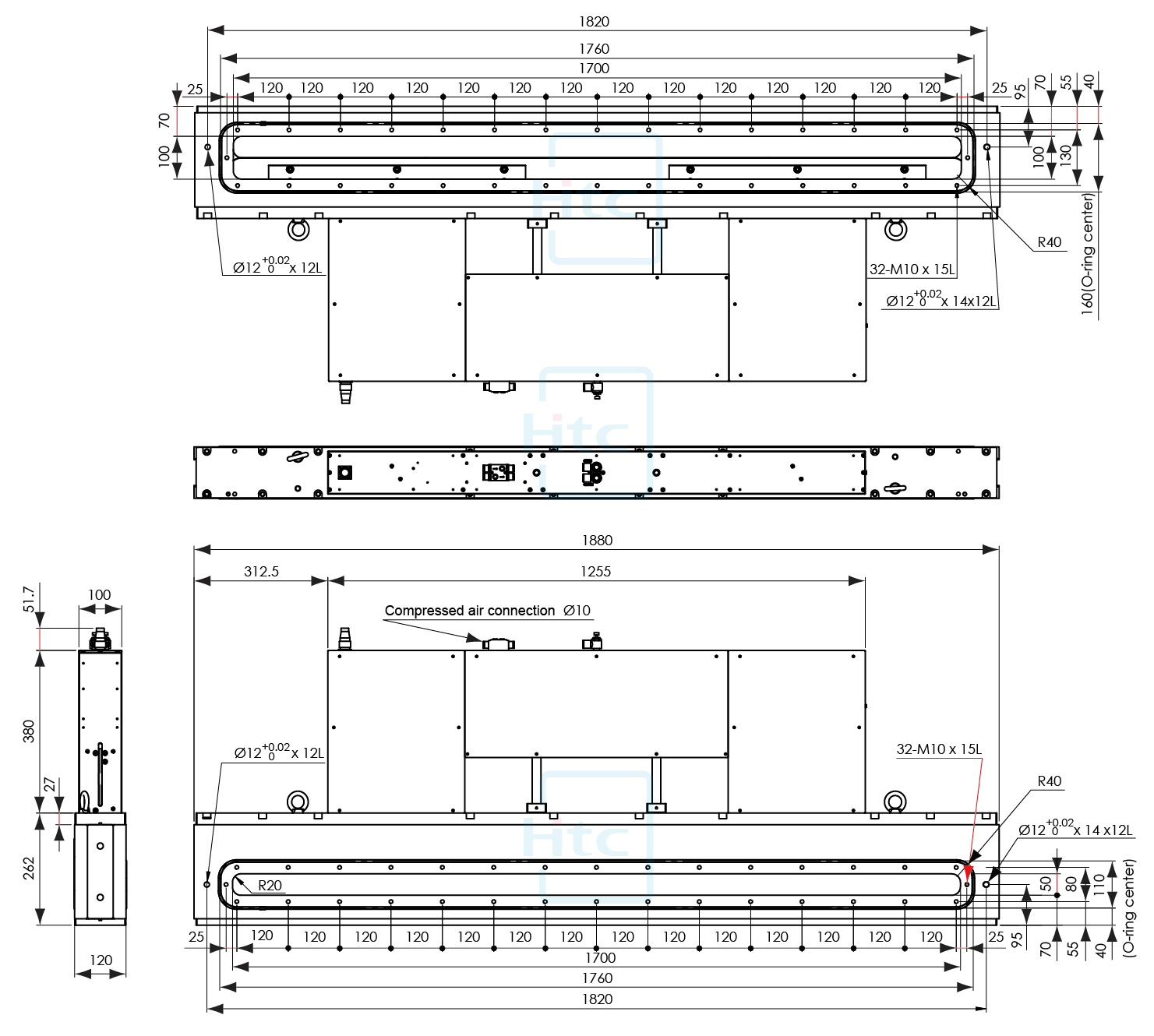

外觀尺寸圖
技術規格
|
名稱 |
Rectangle Transfer Valve- 50x1700 |
|
開口尺寸 |
50 x 1700 mm |
|
材質 |
閥體, 門板 ： 304 S.S. |
|
洩漏率 |
Body < 1x10-9 mbar. l/sec |
|
壓力範圍 |
1x10-8 mbar to 1 bar |
|
驅動軸引入方式 |
Option: Bellows |
|
門板兩側允許壓差 |
Positive pressure difference ≦ 1 bar |
|
開閉容許壓差 |
< 13 mbar |
|
使用溫度 |
閥體與門板 < 90℃ |
|
操作氣壓源壓力 |
Pneumatic 5~6 Kg/cm² |
|
Standard Seal |
Gate O-ring : Viton |
|
Opening/Close sensor |
DC4-24(V)) or AC4-240(V), Amps:5-40 mA |
|
Solenoid Power (Optional) |
DC24(V) ,AC24(V),AC110(V),AC220(V) |
|
開閉時間 |
open time ≦ 5 sec |
|
使用壽命(註1) |
1,000,000 cycle |
|
安裝方向 |
驅動器 朝上 或 朝下 |
註1: 此壽命值在室溫25°C和乾淨環境中,且開啟作動需於壓差<13 mbar下 (若開啟作動超過壓差13 mbar,則不在此保證)。
Functional principle
 |
|
