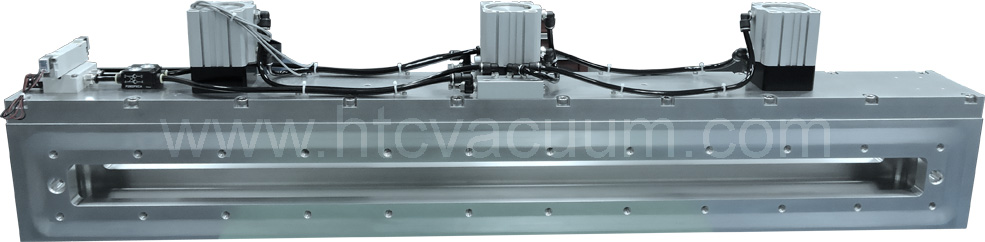

旋板式矩形閥
矩形閥門
| select | |
| Model No. | Customized |
| Parts No. | Customized |
| Material | Stainless steel or Aluminum |
| Size | by your need |
| Note | Please check box, Send Inquiry to contact us. |
| Select | Model No. | Parts No. | Material | Size | Note |
| Customized | Customized | Stainless steel or Aluminum | by your need | Please check box, Send Inquiry to contact us. |
旋板式矩形閥技術規格
|
名稱 |
45x1200 Transfer Valve |
|
開口尺寸 |
45x1200 mm |
|
材質 |
Valve body and gate plate: Al6061-T6 Sealing: Viton |
|
驅動軸引入方式 |
Bellows |
|
使用溫度 |
Valve body, flanges ≤ 120°C Pneumatic actuator ≤ 60°C |
|
洩漏率 (mbar*l/s) |
body <1x10-7, valve seat <1x10-5 |
|
門板兩側允許壓差 |
In closing direction ≦ 1 bar In opening direction ≦ 10 mbar |
|
開閉容許壓差 |
≦ 5 mbar |
|
Operating CDA pressure |
5~6 bar |
|
開閉時間 |
Open <1.2 sec, Close <1.2 sec |
|
使用壽命(註1) |
1,000,000 |
|
安裝方向 |
actuator up or down |
|
位置指示器 |
24 VDC (option) |
|
電磁閥 |
24 VDC (option) |
註1: 此壽命值在室溫25°C和乾淨環境中,且開啟作動需於壓差<5 mbar下 (若開啟作動超過壓差5 mbar,則不在此保證)。

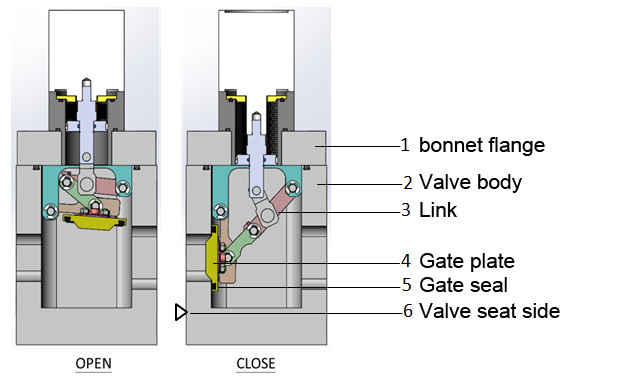

功能原理說明
