大型矩形門型閘閥 L-motion type
矩形閥門
| select | |
| Model No. | Customized |
| Parts No. | Customized |
| Material | Stainless steel |
| Size | by your need |
| Note | Please check box, Send Inquiry to contact us. |
| Select | Model No. | Parts No. | Material | Size | Note |
| Customized | Customized | Stainless steel | by your need | Please check box, Send Inquiry to contact us. |
大型矩形門閥L-motion 型式 (L-motion 大型門型閘閥)

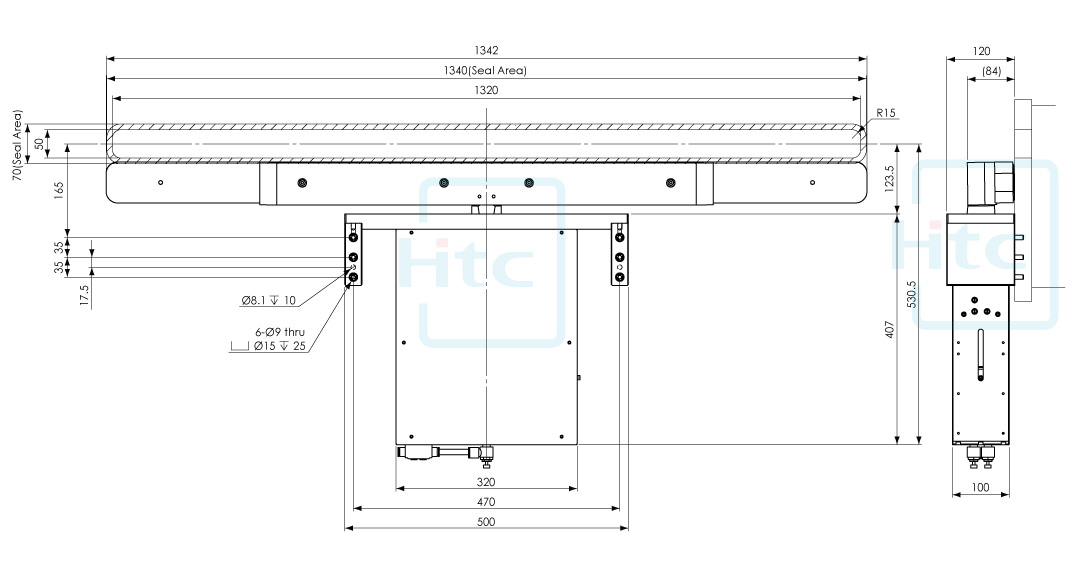

外觀尺寸圖
技術規格
|
名稱 |
Rectangle Door Valve- 50x1320 |
|
開口尺寸 |
50 x 1320 mm |
|
材質 |
Seal plate ： 304 S.S. |
|
洩漏率 |
Seal < 1x10-9 mbar. l/sec |
|
壓力範圍 |
1x10-8 mbar to 1 bar |
|
門板兩側允許壓差 |
In close direction ≦ 1 bar |
|
開閉容許壓差 |
< 10 mbar |
|
使用温度 |
Seal plate < 120℃ |
|
操作氣壓源壓力 |
Pneumatic 5~6 Kg/cm² |
|
Standard Seal |
Seal plate O-ring : Viton |
|
Open/Close sensor |
DC4-24(V)) or AC4-240(V), Amps:5-40 mA |
|
Solenoid Power (Optional) |
DC24(V) ,AC24(V),AC110(V),AC220(V) |
|
開閉時間 |
open time ≦ 3.5 sec |
|
使用壽命 (註1) |
1,000,000 cycle |
|
安裝方向 |
驅動器 朝上 或 朝下 |
註1:此壽命值在室溫25°C和乾淨環境中,且開啟作動需於壓差<10 mbar下 (若開啟作動超過壓差10 mbar,則不在此保證)。
Functional principle
 |
|
