KF封蓋
KF法蘭(NW法蘭)
.jpg)
.jpg)
.jpg)
.jpg)
| select | ||||||||||||||||||
| Model No. | KF10BS | KF16BS | KF25BS | KF40BS | KF50BS | KF63BS | KF80BS | KF100BS | KF160BS | KF10BA | KF16BA | KF25BA | KF40BA | KF50BA | KF63BA | KF80BA | KF100BA | KF160BA |
| Parts No. | 150101003 | 150102003 | 150103003 | 150105003 | 150106003 | 150107003 | 150108003 | 150109003 | 150112003 | 150101001 | 150102001 | 150103001 | 150105001 | 150106001 | 150107001 | 150108001 | 150109001 | 150112001 |
| Material | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
| A | 30 | 30 | 40 | 55 | 75 | 87 | 114 | 134 | 190 | 30 | 30 | 40 | 55 | 75 | 87 | 114 | 134 | 190 |
| B | 12.2 | 17.2 | 26.2 | 41.2 | 52.2 | 70 | 83 | 102 | 153 | 12.2 | 17.2 | 26.2 | 41.2 | 52.2 | 70 | 83 | 102 | 153 |
| C | 5 | 5 | 5 | 5 | 5 | 5 | 12 | 12 | 12 | 5 | 5 | 5 | 5 | 5 | 5 | 12 | 12 | 12 |
| Select | Model No. | Parts No. | Material | A | B | C |
| KF10BS | 150101003 | 304 S.S. | 30 | 12.2 | 5 | |
| KF16BS | 150102003 | 304 S.S. | 30 | 17.2 | 5 | |
| KF25BS | 150103003 | 304 S.S. | 40 | 26.2 | 5 | |
| KF40BS | 150105003 | 304 S.S. | 55 | 41.2 | 5 | |
| KF50BS | 150106003 | 304 S.S. | 75 | 52.2 | 5 | |
| KF63BS | 150107003 | 304 S.S. | 87 | 70 | 5 | |
| KF80BS | 150108003 | 304 S.S. | 114 | 83 | 12 | |
| KF100BS | 150109003 | 304 S.S. | 134 | 102 | 12 | |
| KF160BS | 150112003 | 304 S.S. | 190 | 153 | 12 | |
| KF10BA | 150101001 | Aluminum | 30 | 12.2 | 5 | |
| KF16BA | 150102001 | Aluminum | 30 | 17.2 | 5 | |
| KF25BA | 150103001 | Aluminum | 40 | 26.2 | 5 | |
| KF40BA | 150105001 | Aluminum | 55 | 41.2 | 5 | |
| KF50BA | 150106001 | Aluminum | 75 | 52.2 | 5 | |
| KF63BA | 150107001 | Aluminum | 87 | 70 | 5 | |
| KF80BA | 150108001 | Aluminum | 114 | 83 | 12 | |
| KF100BA | 150109001 | Aluminum | 134 | 102 | 12 | |
| KF160BA | 150112001 | Aluminum | 190 | 153 | 12 |

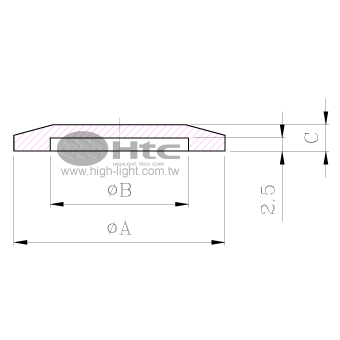

SolidWorks 2D & 3D 產品圖稿
Material : 304 S.S.| Model No. | KF10BS | KF16BS | KF25BS | KF40BS | KF50BS | KF63BS | KF80BS | KF100BS | KF160BS |
| Parts No. | 150101003 | 150102003 | 150103003 | 150105003 | 150106003 | 150107003 | 150108003 | 150109003 | 150112003 |
| Download Type | DWG | STEP | DWG | STEP | DWG | STEP | DWG | STEP | DWG | STEP | DWG | STEP | DWG | STEP | DWG | STEP | DWG | STEP |
Material : Aluminum
| Model No. | KF10BA | KF16BA | KF25BA | KF40BA | KF50BA | KF63BA | KF80BA | KF100BA | KF160BA |
| Parts No. | 150101001 | 150102001 | 150103001 | 150105001 | 150106001 | 150107001 | 150108001 | 150109001 | 150112001 |
| Download Type | DWG | STEP | DWG | STEP | DWG | STEP | DWG | STEP | DWG | STEP | DWG | STEP | DWG | STEP | DWG | STEP | DWG | STEP |
注意: 請按【滑鼠右鍵】選擇【另存新檔】或【另存連結為】, 需稍等一下即出現存檔視窗。
