KF HV Aluminum angle valve – manual
Aluminum block valves
| select | ||||||

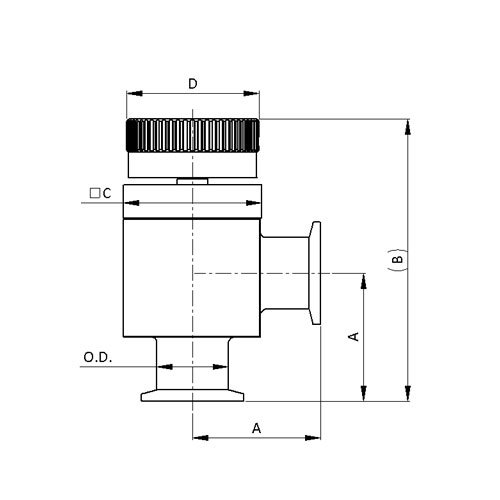

| Model No. | AVABH-KF16-M-E | AVABH-KF25-M-E | AVABH-KF40-M-E | AVAH-KF16-M-E | AVAH-KF25-M-E | AVAH-KF40-M-E |
| Parts No. | 31010901002MA | 31011101002MA | 31011301002MA | 31010901002M0 | 31011101002M0 | 31011301002M0 |
| A | 40 | 50 | 65 | 40 | 50 | 65 |
| B | 103 | 110 | 150 | 106.2 | 110 | 150 |
| C | 45 | 54 | 70 | 45 | 54 | 70 |
| D | 52 | 52 | 62 | 52 | 52 | 62 |
| O.D. | 20 | 28 | 45 | 20 | 28 | 45 |
| Select | Model No. | Parts No. | A | B | C | D | O.D. |
| AVABH-KF16-M-E | 31010901002MA | 40 | 103 | 45 | 52 | 20 | |
| AVABH-KF25-M-E | 31011101002MA | 50 | 110 | 54 | 52 | 28 | |
| AVABH-KF40-M-E | 31011301002MA | 65 | 150 | 70 | 62 | 45 | |
| AVAH-KF16-M-E | 31010901002M0 | 40 | 106.2 | 45 | 52 | 20 | |
| AVAH-KF25-M-E | 31011101002M0 | 50 | 110 | 54 | 52 | 28 | |
| AVAH-KF40-M-E | 31011301002M0 | 65 | 150 | 70 | 62 | 45 |
Specification
- 316Ti stainless steel bellows.
- High purity aluminum body.
- Easy maintenance, fast bellows and seal replacement.
| Applicable Area. | Flange | Solenoid | Sensor | Formed bellow | 16 | 25 | 40 |
| Europe | KF | √ | 31010901002MA | 31011101002MA | 31011301002MA | ||
| Europe | KF | 31010901002M0 | 31011101002M0 | 31011301002M0 |
