三通管-KF法兰接口
三通 Tee
| select | ||||||||
| Model No. | KF16TA | KF25TA | KF40TA | KF50TA | KF16TE | KF25TE | KF40TE | KF50TE |
| Parts No. | 16151021024 | 16151031034 | 16151051054 | 16151061064 | 16161021024 | 16161031034 | 16161051054 | 16161061064 |
| Material | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. |

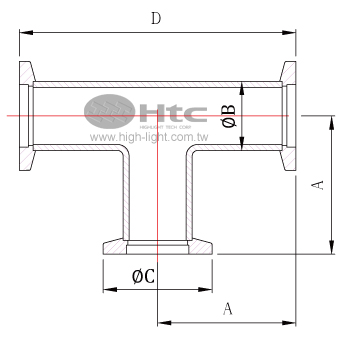

| A | 38.3 | 51.4 | 61 | 80 | 40 | 50 | 65 | 70 |
| B | 19.05 | 25.4 | 38.1 | 50.8 | 19.05 | 25.4 | 38.1 | 50.8 |
| C | 30 | 40 | 55 | 75 | 30 | 40 | 55 | 75 |
| D | 76.6 | 102.8 | 122 | 160 | 80 | 100 | 130 | 140 |
| Available area | USA | USA | USA | USA | Europe | Europe | Europe | Europe |
| Select | Model No. | Parts No. | Material | A | B | C | D | Available area |
| KF16TA | 16151021024 | 304 S.S. | 38.3 | 19.05 | 30 | 76.6 | USA | |
| KF25TA | 16151031034 | 304 S.S. | 51.4 | 25.4 | 40 | 102.8 | USA | |
| KF40TA | 16151051054 | 304 S.S. | 61 | 38.1 | 55 | 122 | USA | |
| KF50TA | 16151061064 | 304 S.S. | 80 | 50.8 | 75 | 160 | USA | |
| KF16TE | 16161021024 | 304 S.S. | 40 | 19.05 | 30 | 80 | Europe | |
| KF25TE | 16161031034 | 304 S.S. | 50 | 25.4 | 40 | 100 | Europe | |
| KF40TE | 16161051054 | 304 S.S. | 65 | 38.1 | 55 | 130 | Europe | |
| KF50TE | 16161061064 | 304 S.S. | 70 | 50.8 | 75 | 140 | Europe |
■可根据要求提供特殊尺寸
■零件号（零件号）加“ K”表示喷砂表面
■零件号（零件号）加“ L”表示抛光表面
